HVAC Ductwork Rough-In Inspection

▸ Start Interactive
Checklist

Inspecting HVAC ductwork rough-in before covering is a critical phase in construction, ensuring that all duct installations meet specified standards and are free from defects. This process involves checking the layout, alignment, and connections of ductwork systems in buildings to ensure efficient air flow and system functionality. This checklist focuses on pre-cover inspections, offering a step-by-step guide to verify the quality and compliance of duct installations. By using this interactive checklist, professionals can tick off completed tasks, add comments, and export their reports, ensuring a thorough and documented inspection process.

Ensure HVAC ductwork meets design specifications and is free from defects before covering.
Identify and rectify installation errors early to avoid costly post-cover repairs.
Streamline inspections with an interactive checklist, featuring tick, comment, and export capabilities safeguarded by QR code.
Enhance airflow efficiency and system performance by confirming proper duct alignment and connection.

Duct Layout Verification

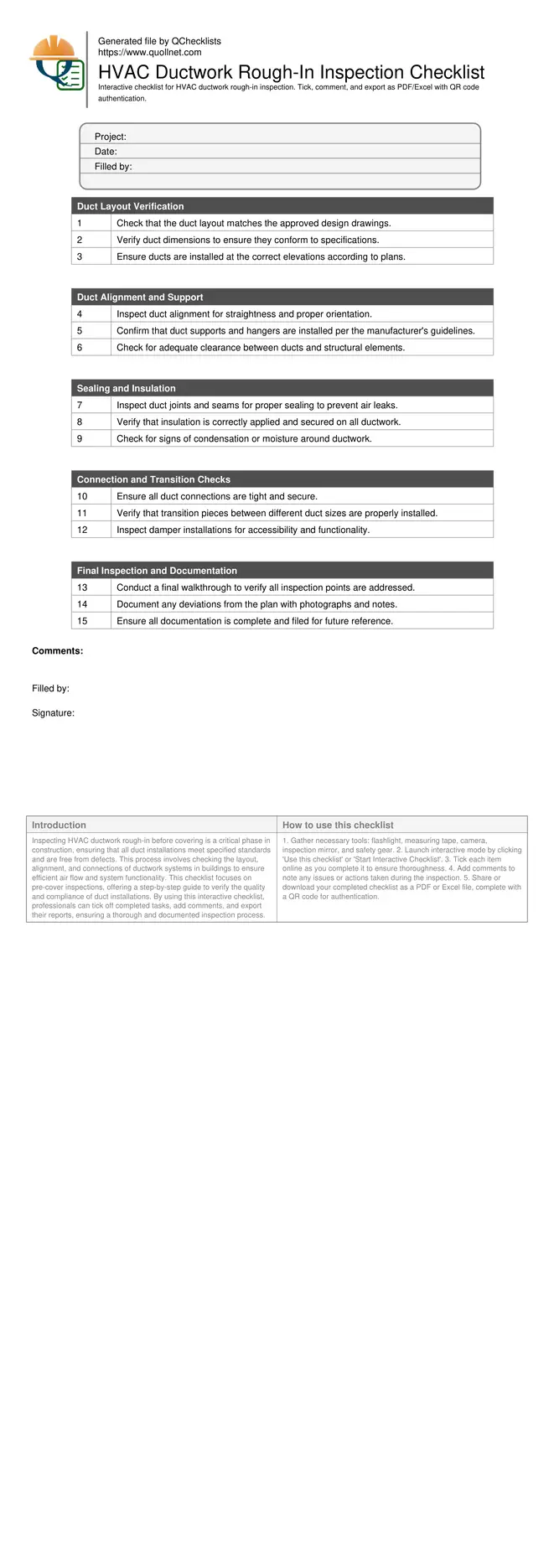

1. Check that the duct layout matches the approved design drawings.
2. Verify duct dimensions to ensure they conform to specifications.
3. Ensure ducts are installed at the correct elevations according to plans.

Duct Alignment and Support

4. Inspect duct alignment for straightness and proper orientation.
5. Confirm that duct supports and hangers are installed per the manufacturer's guidelines.
6. Check for adequate clearance between ducts and structural elements.

Sealing and Insulation

7. Inspect duct joints and seams for proper sealing to prevent air leaks.
8. Verify that insulation is correctly applied and secured on all ductwork.
9. Check for signs of condensation or moisture around ductwork.

Connection and Transition Checks

10. Ensure all duct connections are tight and secure.
11. Verify that transition pieces between different duct sizes are properly installed.
12. Inspect damper installations for accessibility and functionality.

Final Inspection and Documentation

13. Conduct a final walkthrough to verify all inspection points are addressed.
14. Document any deviations from the plan with photographs and notes.
15. Ensure all documentation is complete and filed for future reference.

Importance of Pre-Cover Inspections

Pre-cover inspections of HVAC ductwork are essential to ensure the system's long-term effectiveness and efficiency. By addressing issues at this stage, contractors can prevent future problems that could lead to inefficient heating and cooling, increased energy costs, and potential health hazards due to poor air quality.

Detect and correct errors before they become concealed.
Ensure compliance with building codes and standards.
Prevent costly repairs post-construction.
Maintain optimal airflow and system performance.

Common Ductwork Issues to Avoid

Common issues in HVAC ductwork installations include improper sealing, inadequate supports, and incorrect alignment. These problems can lead to air leaks, system inefficiencies, and increased operational costs. By meticulously inspecting each aspect of the ductwork, these issues can be identified and rectified early.

Avoid air leaks by ensuring all joints are sealed properly.
Ensure sufficient support to prevent sagging.
Check alignment to avoid airflow restrictions.
Inspect for potential blockages or obstructions.

How to Use This HVAC Ductwork Rough-In Inspection Checklist

Gather necessary tools: flashlight, measuring tape, camera, inspection mirror, and safety gear.
Launch interactive mode by clicking 'Use this checklist' or 'Start Interactive Checklist'.
Tick each item online as you complete it to ensure thoroughness.
Add comments to note any issues or actions taken during the inspection.
Share or download your completed checklist as a PDF or Excel file, complete with a QR code for authentication.

Call to Action

Start Interactive Checklist
Tick off tasks, leave comments on items or the whole form, and export your completed report to PDF or Excel—with a built-in QR code for authenticity.
